Top-Quality Asphalt Solutions

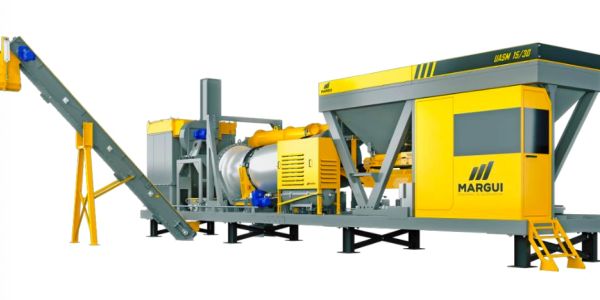

With a continuous production capacity of up to 30 tons/hour, designed with the internal dimensions of a 40-foot container.

FEATURES

➭Individual dynamic weighing system for 2 materials;

➭External mixer;

➭Dosing silos;

➭Counterflow dryer;

➭Drag elevator;

➭Bag filter;

➭Diesel burner;

➭Integrated control software.

TECHNICAL SPECIFICATIONS

➭ Maximum production of 30 tons/hour;

➭ Two silos in an inverted pyramid shape;

➭ Individual dynamic weighing via load cells;

➭ Anti-segregation storage silo;

➭ Control panel inside the cabin, complying with NR-12;

➭ High-pressure centrifugal fan;

➭ Production monitoring and reporting system;

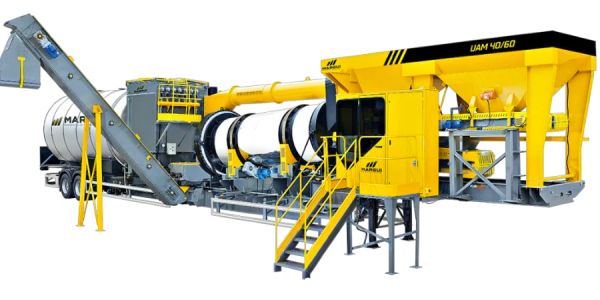

 Mobile counterflow hot mix asphalt plant (HMA) for productions of up to 60

tons of asphalt per hour.

FEATURES

➭ External double-shaft mixer;

➭ Diesel or gas-powered burners;

➭ Automatic and manual production control;

TECHNICAL SPECIFICATIONS

➭ Maximum production of 40 tons/h;

➭ Drying center in the counterflow system;

➭ External "pug mill" type mixer with high-resistance double shaft,

interchangeable arms and blades;

➭ Filtration and fines recovery function;

➭ Control panel external to the cabin, complying with NR-10;

➭ Production monitoring and reporting system;

➭ Redler® type drag elevator;

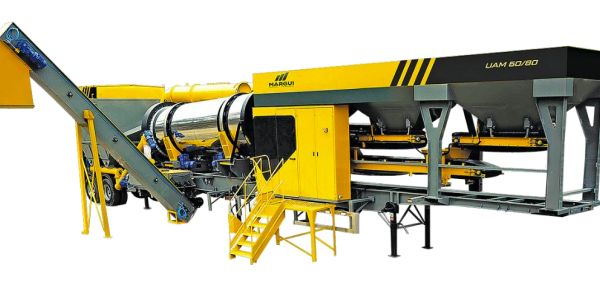

 Hot mix asphalt plant (HMA), counterflow type, for productions of up to 80

tons of asphalt per hour.

FEATURES

➭Customized layout;

➭External twin-shaft mixer;

➭Automatic and manual production control;

➭Temperature control;

➭Gas filtration with optional tank set.

TECHNICAL SPECIFICATIONS

➭ Maximum production of 80 tons/h;

➭ Drying center in the counterflow system;

➭ Composed of three 5m³ silos each;

➭ Belts with speed adjustment controlled from the control cabin;

➭ CAP spray bar with thermal oil heating;

➭ Automatic cleaning system for the bags, type “Jet Pulse”; ➭ Transport of

fines to the mixer via a screw conveyor;

➭ Automation via supervisory system with electronic control of the plant;

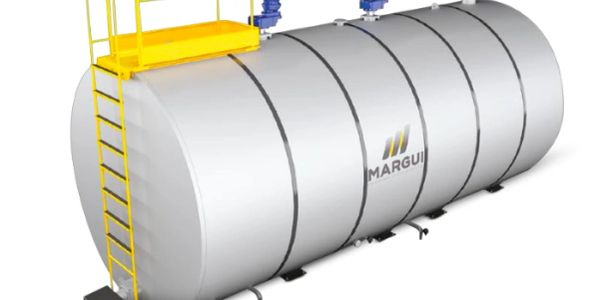

 Tanks with a capacity of 40,000 liters of bitumen and up to 20,000 liters of

diesel, equipped with a tubular fire burner, automatic minimum and

maximum temperature control, analog and digital temperature sensors,

thermal oil pump with electrical panel.
